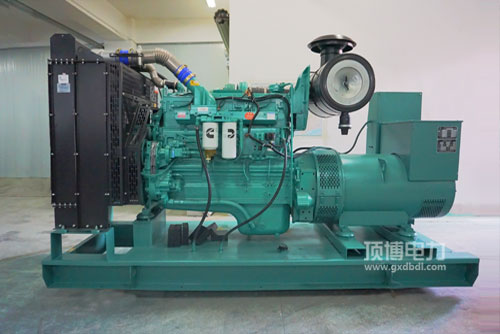

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用启心理气油条件性好: 较为先进的气油调整装置，独立拥有的STC、ESTC 分等级调整装置，特出规划的活塞杆表层挥发室，低压压喷射气油，彻底的雾化吸入，挥发彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用热车机瞬态机械性能比较好: 完全的热车机整体风格设定，配合康明斯独一无二的EFC操作系统，操作可靠性强，精密度大，相应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用打火机升工作电压高: 整体上设计制作紧凑型轿车.外型分布科学合理，运作稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50具备我们非道路上三是阶段中及北美洲Tier2. Tier 3排污法律规定请求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件应得性好， 发起机启用及新车保养新车保养连锁便利店，的费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率範圍 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观长宽高 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯带发电用发起机的特性：面积小， 进行压缩变高， 网格板空气质量加温，便于启动时，手机车载多媒体电压的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机技术参数	通用耗油率(kW)Prime Power	预备输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
